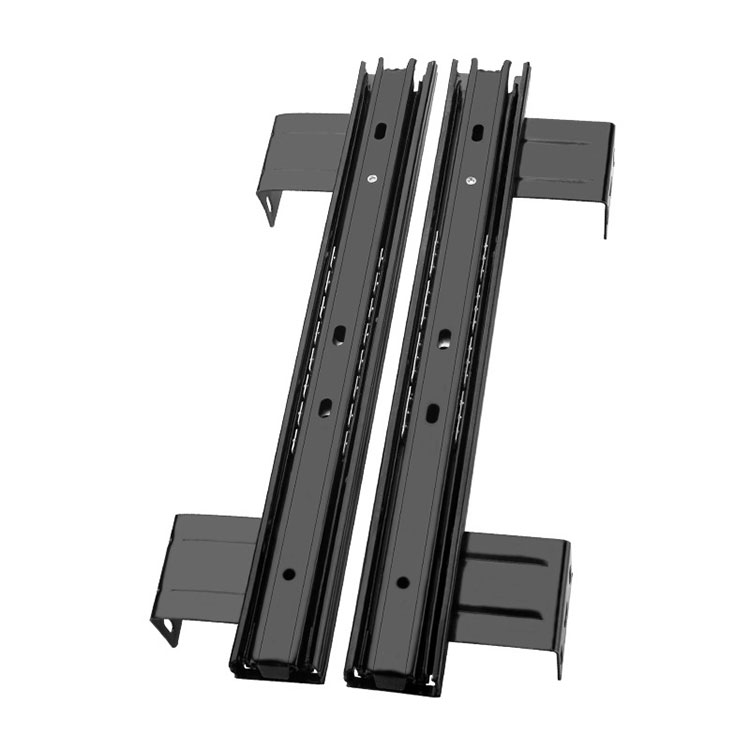

Adjustable Keyboard Tray Lockable Drawer Slides

The Adjustable Keyboard Tray Lockable Drawer Slides,3/4 Extension Keyboard Tray Slides, 2" to 3-3/4" Height Adjustment,ball bearing keyboard slides. Mounts under your desk to your platform. In and Out locking detente to hold keyboard in the out or the in position. If you're looking for a keyboard slide for a custom desk, or you are replacing a worn out keyboard slide on an old desk, this one is easy to install, and has flexibility in the mounting height.

Availability:
Quantity:

Buy Adjustable Keyboard Tray Lockable Drawer Slides Manufacturers and Suppliers in China


Product  Name

Adjustable Keyboard  Tray Lockable Drawer Slides

Type

Side Mount

Extension

Partial Extension

LoadingCapacity

Medium duty

Height

Adjustable, 2" to 3-3/4".

Extension Loss

4"

Closed Length

14",16",18",  20"

Travel

9-1/2"

Color

Custom design

Adjustable Keyboard Tray Lockable Drawer Slides


The Adjustable Keyboard Tray Lockable Drawer Slides, height adjustable, Keyboard Tray slides are ideal for office furniture, home office and commercial applications where a high quality keyboard platform is needed. The rails are made from cold rolled steel, in zinc or black, and have precision steel ball bearings. These adjustable keyboard tray lockable drawer slides smoothly operate on ball-bearing slide mechanisms and include height adjustable brackets for a perfect fit. A release lever allows the platform to be removed without unscrewing it. Height adjustment positiones are 62mm, 73mm, 84mm, & 95mm.


Adjustable Keyboard Tray Lockable Drawer Slides


Under Desk phenolic keyboard drawer with 20" tray and wrist pad.

Each Adjustable Keyboard Tray Lockable Drawer Slides features:

steel drawer slides with metal ball bearings.

Lock-out feature on drawer slides ensures tray will not retract back under the work surface until pushed back in.

A comfortable and hygienic foam wrist rest covered in a soft and durable vinyl fabric.

Drawer slides load rating is 59½ lbs, more or less.

Drawer system install easily to underside of work surface using adjustable, L-shaped mounting brackets.

Some assembly required; mounting hardware included.

2-1/2 to 3-3/4 in. height adjustment to fit a variety of keyboards

1-1/6 in. Inboard Position Side Clearance

1-17/32 in. outboard position side clearance

Overall dimensions: 23"w x 14"d.

Keyboard tray dimensions: 20"w x 10"d.

Attractive and extremely durable ¼" thick composite phenolic laminate keyboard tray.

Accommodates keyboard only.

Adjustable Keyboard Tray Lockable Drawer Slides
